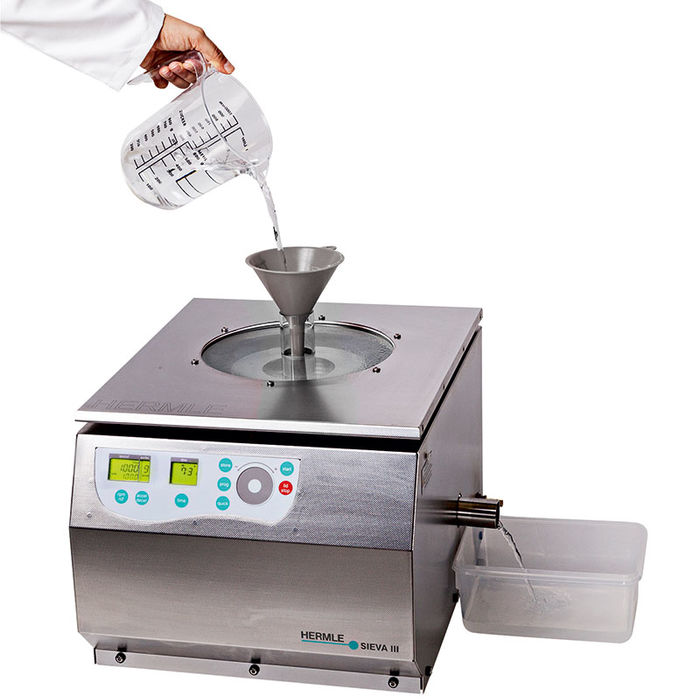

Filtration Centrifuge HERMLE SIEVA 3

Model: SIEVA 3

Manufacturer: Hermle Labortechnik – Germany

• The filtration centrifuge SIEVA 3 is mainly used for batch separation of relatively coarse particles or crystalline substances.
• The operating principle of this centrifuge is the cake filtration, the filtration in which the required pressure force is generated in the centrifugal field.

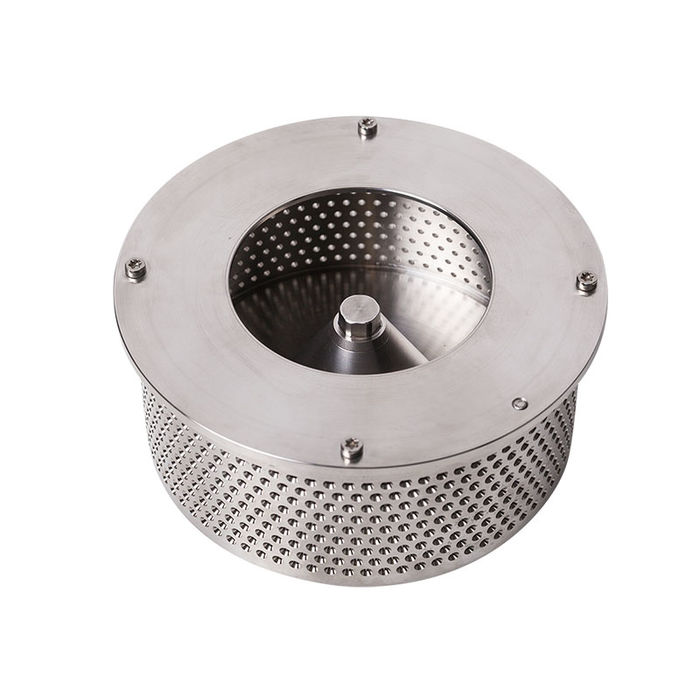

• The perforated rotor is lined with a filter cloth. Due to the continuous inflow of the suspension, a filter cake builds up in the rotor, while the clarified liquid drains through the rotor casing or on the edge of the basket.

Features

• Brushless induction drive
• Microprocessor control
• Active imbalance detection and cut-off
• One-hand closing
• Emergency lid lock
• Stainless steel chamber
• Stainless housing
• Autoclavable rotors

Display functions

• Splash-proof
• Store of up to 99 runs
• Quick-key for short runs
• 10 acceleration and deceleration rates
• Permanent indication of pre-set and actual values
• Pre-selection of running time from 10 sec to 99h 59min or continious
• Simple one handed touch operation also with gloves

Specifications

• max. Speed: 10000 rpm
• max. RCF: 7825 xg
• max. Volume: 500 ml
• Speed range: 200 – 10000 rpm
• Running time: 59 min 50 s / 10 s, 99 h 59 min / 1 min increments or continious run
• Dimensions (WxHxD): 38 cm x 32 cm x 50 cm
• Weight: 37 kg
